High Efficiency for the Cold Chain

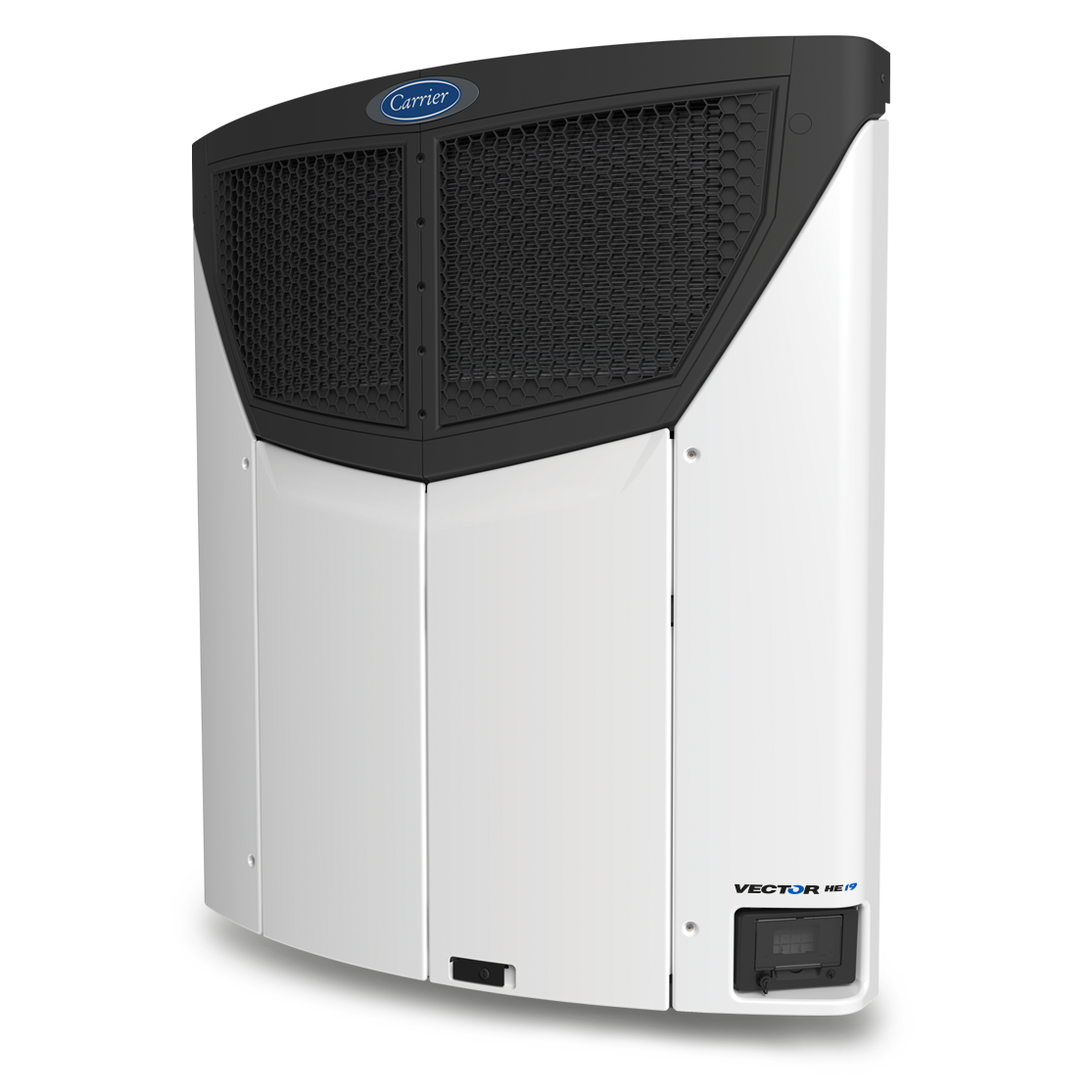

Vector® HE 19 – High Efficiency – is the next generation temperature-controlled trailer system. The unit combines experienced technology, like the all-electric architecture of the E-Drive, with new additions designed to significantly improve performance and efficiency.
Benefits
The new Vector HE 19 unit delivers huge performance advantages for our customers in just about every area*.
- Improved multi-speed engine design, bringing fuel savings of up to 30 per cent
- New, Stage V compliant diesel engine with electronic engine control
- upper airflow management, creating much more efficient cold production
- Single, ultra-efficient evaporator fan
- The proven performance of a hermetic compressor and economizer
- The efficiency of a microchannel heat exchanger condenser
- Weight improved (-10 %)
- Noise & vibration improved -3dB(A)
- Controls & HMI improved (New APX control system)
- Total cost of ownership (up to 20%)
- Multi energy source capability – Flexible Power ready
* Results based on the comparison between the new Vector HE 19 single temperature and the Vector 1950 single temperature. Vector HE 19 standard version emits -3dB(A) in accordance with CE2000-14 vs Vector 1950 standard version – based on external laboratory tests CEVAA.
Refrigeration Capacity
System net cooling capacity under A.T.P. Conditions at 30° C ambient
| Capacity on engine power 0°C |
17650 W |
| Capacity on engine power -20°C |
9800 W |
| Capacity on electrical stand by 0°C |
14880 W |
| Capacity on electrical stad by -20°C |
8690 W |
Heating Capacity
| Diesel High speed 18°C/-18°C |
9000 W |
| Standby 18°C/-18°C |
9000 W |
Airflow
| on high speed engine operation |
- |
| (AMCA 21085) m3/hr |
5545 m3/hr |
Weight
| including battery |
800 kg |
| S version |
Not available |
Engine
| n° of cylinders - cm3 |
4 - 2200 cm3 |
| Model |
- |
| Maintenance Interval |
3000 hrs |
Compressor
| Model |
ZF22 economized |
| Displacement |
144 |
| n° of cylinders |
Scroll |
Electrical Stand by Motor
| Voltage / Phase / Frequency |
460 VAC - 3 Phases |
| Rating |
20,7 KVA |
Refrigerant
Sound pressure
| High speed |
TBC |
| Low speed |
TBC |
| Standby |
TBC |
